Rotating Balance

This system measures six load components on the nacelle, while also measuring six load components on the rotating fan. The stiffness of the rotating balance maintains a minimum tip clearance. The fan is driven by a shaft through the center of the nacelle balance.

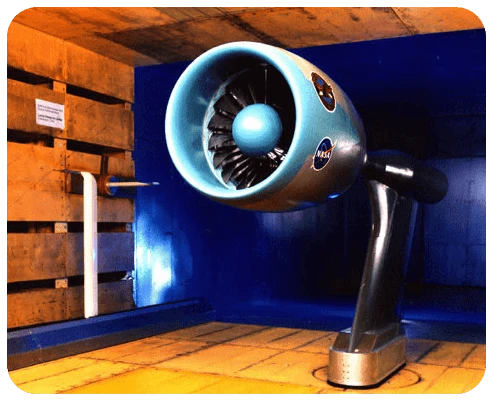

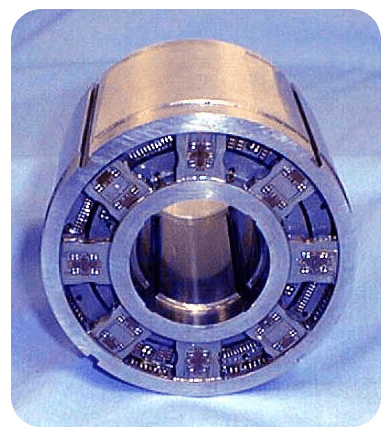

Rotating Balance Installation in Nacelle / Engine Test Platform Rotating Balance for Fan Loads

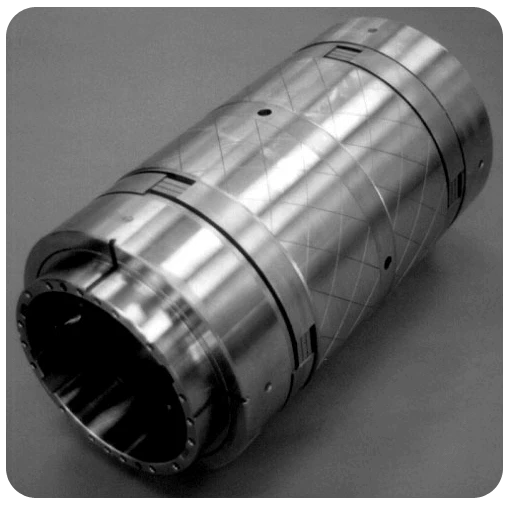

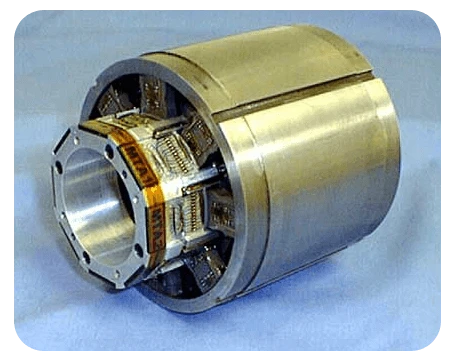

Rotating Balance for Fan Loads Static Balance for Nacelle Loads
