Semi Span Balance

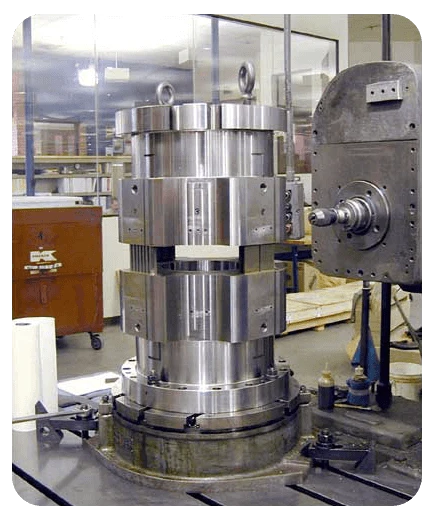

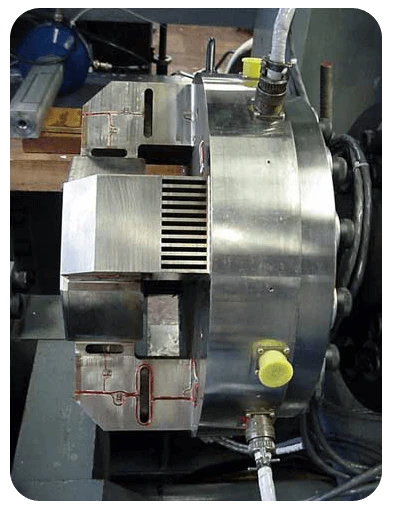

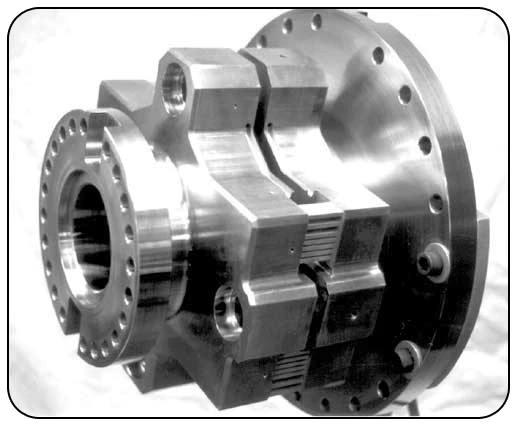

The Semi-Span Pedestal balance is fabricated from a single piece of material. There is a hole through the center for model services. It has extreme load capacities with minimum deflections. The natural frequencies are high and the balance measures 3 moments and 2 forces. Redundant bridges increase the balance’s reliability.

Existing designs

Balance ID  NF (lb)  SF (lb) AF (lb) PM (in-lb) YM (in-lb) RM (in-lb)
MC-10-8.0 1,012 - 202 2,213 3,981 12,064
MC-40-20 4,000 - 800 20,000 32,000 125,000
MC-60-27.5 6,000 - 1,200 36,000 60,000 360,000
MC-125-16.36 12,000 - 1,000 60,000 65,000 500,000
MC-150-27.5 15,000 - 3,000 120,000 180,000 960,000
MC-250-19.25 25,000 - 2,000 150,000 80,000 750,000
MC-300-27.5 30,000 - 6,000 180,000 360,000 1,800,000
MC-400-27.5 40,000 - 8,000 240,000 48,000 2,280,000
