Side Wall

Side Wall Balance

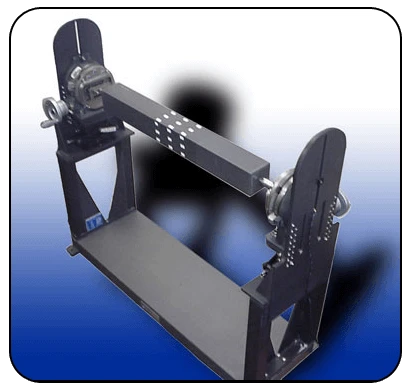

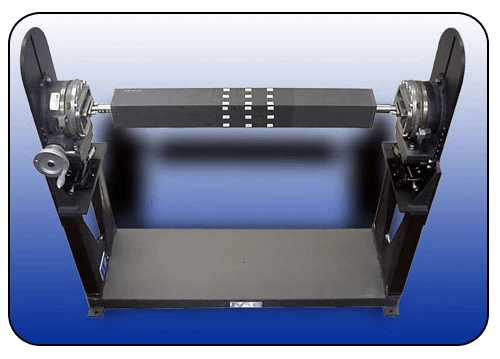

This support system has 2 side wall balances that act in parallel to measure 5 component loads on the model. The calibration body is installed in these images. This system was tailored for a university with extreme budget constraints.

Side Wall Balance Support

Side Wall Balance Support
