Single Strut Support

The single strut attaches to the top of the platform balance, which is mounted to the top of a turntable. The assembly mounts beneath the test section and strut extends to the tunnel center line.  The pitch mechanism is integrated in the bayonet at the top of the strut. A wind shield minimizes the force of the flow on the strut.

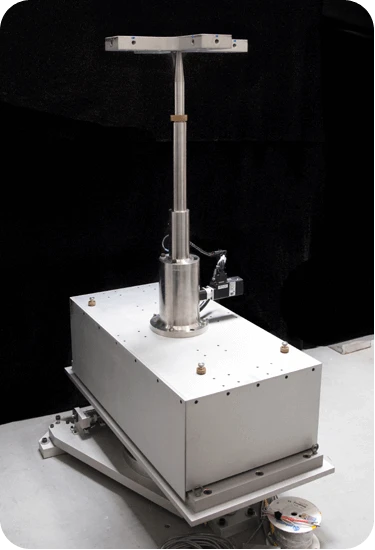

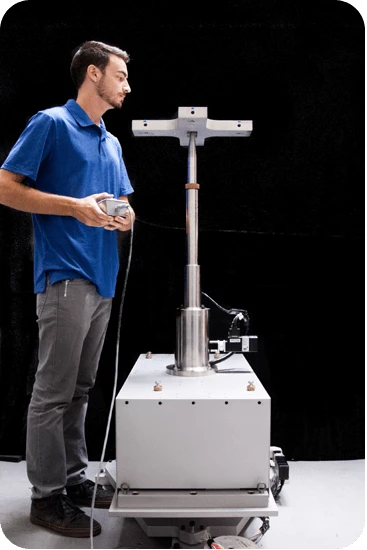

Leveling the Single Strut Support on the External Balance Singe Strut Support on External Balance
